3 Bedroom House model

FULL SPECS & FEATURES Basic Features Bedrooms : 3 Baths : 2 Kitchen; Dinning: Living: : Stories: 1 Garages: 2 car

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

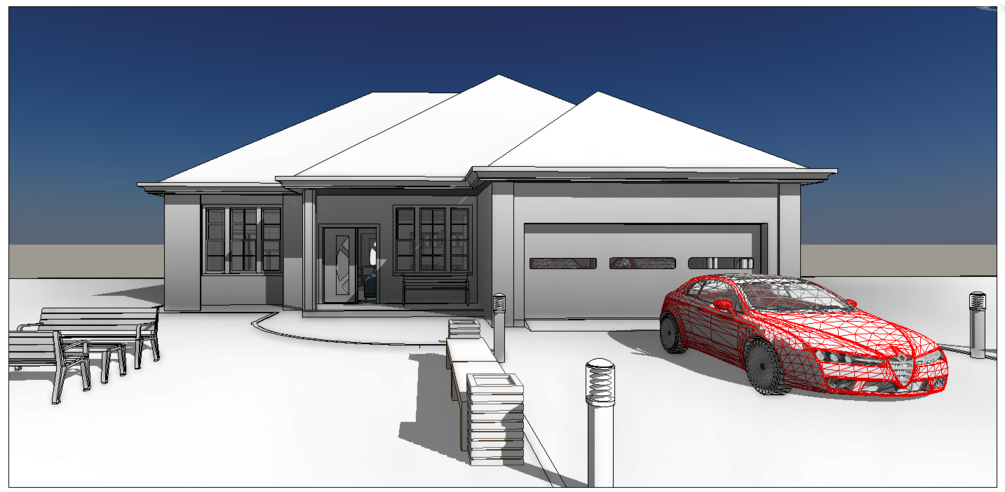

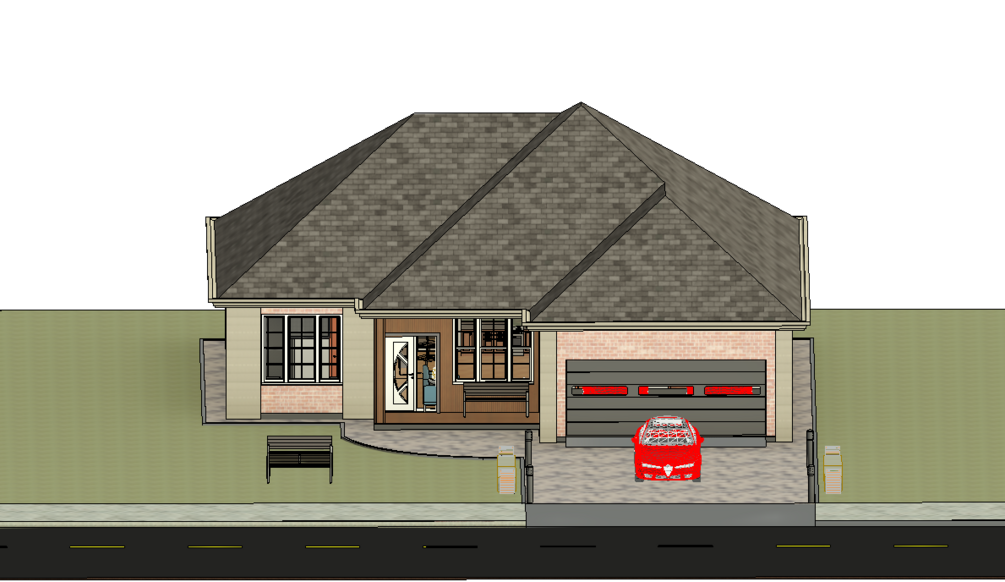

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

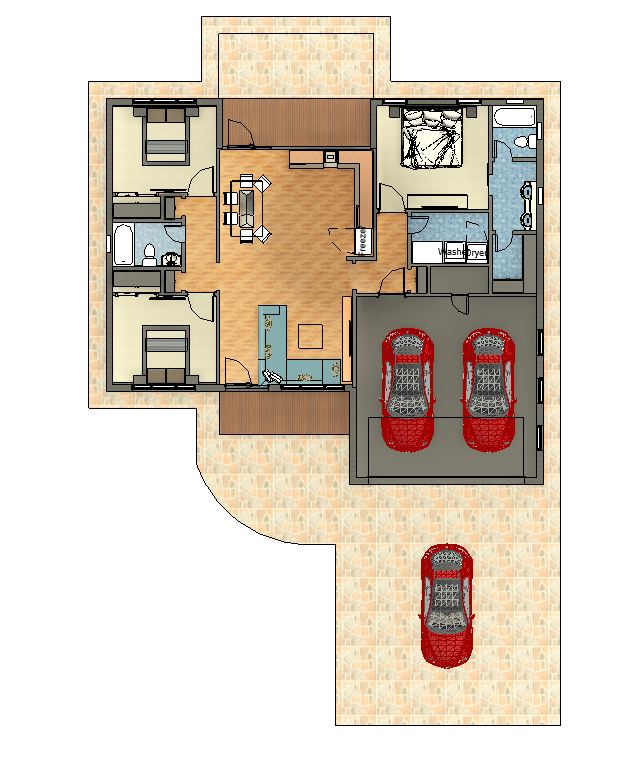

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Scheduales window and door details.

Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required
